Round Cylinder Rotary Dot Peen Marking Equipment , White Metal Engraving Machine

Brand Name : Perfect Laser

Model Number : PEQD-025

Certification : CE / ISO / SGS / TUV

Place of Origin : China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 5000 Units Per Year

Delivery Time : 3-7 Working Days

Packaging Details : Sea-Worthy Packing or Air-Worthy Packing For Dot Peen Marking Equipment

Machine Type : Flat + Rotary Marking

Rotary Function : Yes

Standard Marking Area : 150×100mm

Optional Marking Area : 300×200mm / 400×300mm / 200×100mm

Marking Depth : 0.01~2mm

Marking Speed : ≤50mm/s (for characters height of 3mm / 3-4 numbers /second)

Lifting Range : 0-300 mm

Marking Accuracy : 0.01 mm

Power Supply : 220V±10%, 50HZ

Machine Power : ≤400 W

Contact Now

Round Cylinder Rotary Dot Peen Marking Equipment , White Metal Engraving Machine

(Model: PEQD-025)

►Description Of Dot Peen Marking Equipment

Perfect Laser is a world-renowned manufacturer of dot peen marking equipment. This model is a PEQD-025 rotary dot peen marking equipment. It has been highly praised by consumers since its introduction, and its sales volume is far ahead.
This marking machine not only supports planemarking, but also supports rotary marking to meet the different needs of different customers. This rotary dot peen marking equipment can create letters, VIN codes, serial numbers, dates, etc. on the workpiece. The marking is permanent and will not be erased. At the same time, it can also be used for marking on hard plastic and metal materials.

►Product Features Of Dot Peen Marking Equipment

1. High-quality rotating head: Rotating head of rotating pneumatic marking machine, using stepping motor to realize synchronous NC, and removing rotating chuck can also be used as plane pneumatic marking machine.
2. The rotary pneumatic marking machine can use two-dimensional marking and three-dimensional verbatim marking.
3. The rotary air marking machine adopts linear guide rail, automatic lubrication and dustproof seal, which can ensure high precision operation after long time working.
4. Lift column guide structure, stable and firm structure, simple operation, wide application range.
5. The new Windows operating system supports free input of Chinese and English characters, Arabic numerals, commonly used symbols, and images.
6. Compatible with AutoCAD drawing software, rotary pneumatic marking machine supports a variety of format files.
7. Printed content is automatically stored, data query, statistical traceability.

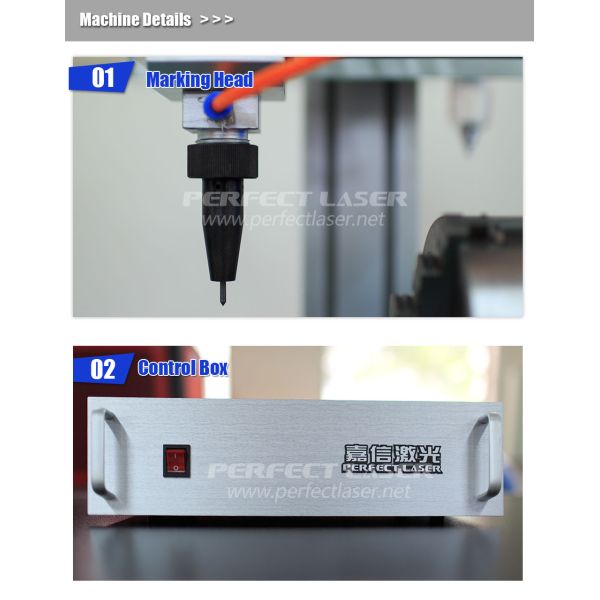

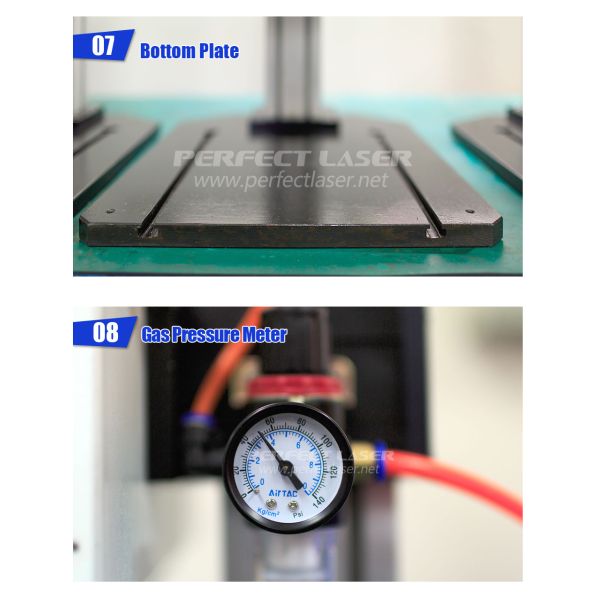

►Details Of Dot Peen Marking Equipment

Round Cylinder Rotary Dot Peen Marking Equipment , White Metal Engraving MachineRound Cylinder Rotary Dot Peen Marking Equipment , White Metal Engraving MachineRound Cylinder Rotary Dot Peen Marking Equipment , White Metal Engraving MachineRound Cylinder Rotary Dot Peen Marking Equipment , White Metal Engraving Machine

►Application Of Dot Peen Marking Equipment

Dot peen marking machine is widely used for automotive, aerospace, electrical, mechanical and other fields. It is suitable for marking on various metal materials, such as stainless steel mark, low carbon steel mark, brass mark, anodized mark, copper Marks, aluminum marks, hard plastic marks, and coating material marks.

►Specifications Of Dot Peen Marking Equipment

Description Dot Peen Marking Machine
Model PEQD-100 PEQD-025 PEQD-030
Machine Type Flat Marking Flat + Rotary Marking Portable Type
Rotary Function No Yes No

Chuck Diameter

(Standard)

125mm

Chuck Diameter

(Optional)

160mm/200mm

/300mm

Working Area

150×100mm/300×200mm/

400×300mm/200×100mm

135×20mm/125×20mm

90×20mm/150×100mm

200×100mm

Marking Accuracy 0.01 mm
Marking Depth 0.01~2mm
Marking Speed

≤50mm/s

(for 3mm letter height/ 3-4 numbers/second)

Lifting Range 0-300 mm
Machine Power ≤400 W
Pin Hardness HRC 92
Power Supply 220V±10%, 50HZ
Air Pressure 0.2-0.6 Mpa
Working Environment -5~40 ℃
Whole Machine Weight 60 Kg 70 kg 25 kg

►Samples Of Dot Peen Marking Equipment

Round Cylinder Rotary Dot Peen Marking Equipment , White Metal Engraving MachineRound Cylinder Rotary Dot Peen Marking Equipment , White Metal Engraving Machine

►Packaging & Delivery Of Dot Peen Marking Equipment

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


►Competitive Advantages Of Dot Peen Marking Equipment

1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.


FOR MORE PRODUCT DETAILS, PLEASE CLICK HERE TO DOWNLOAD!

https://www.perfectlaser.net/peen-mark/
